C19M10-30-002 PRS

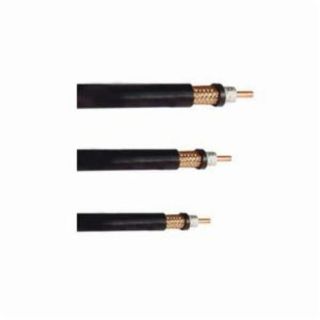

LMR® C19M10-30-002 Type LMR® 195 Extension Cable, 1000 VDC, Aluminum Conductor
Manufacturer: Prosoft Technology
Manufacturer part number: C19M10-30-002
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
0 0

Product Details

Brand Name



Type LMR® 195


ProSoft Technology supplies cables that provide the lowest attenuation and are pre-cut and assembled with connectors at the factory to ensure ultimate reliability and customer satisfaction. LMR® 195 Cables are ideal for jumper assemblies in wireless communication systems and short antenna feed runs.
LMR® Extension Cable, Type LMR® 195, 1000 VDC, Aluminum Conductor, Polyethylene Jacket, Black Jacket, -40 to 85 deg C


For jumper assemblies in wireless communication systems and short antenna feed runs


  • With a 1/2 in minimum bend radius, the LMR® 195 cable is substantially more flexible than RG142 and very comparable to RG58
  • LMR® 195 boasts lower loss than other RG58/RG142 type cables
  • Achieved through the use of high velocity gas-injected closed cell foam dielectric, and bonded aluminium tape outer conductor
  • The UV protected black polyethylene jacket makes the cable rugged and resistant to the full range of outdoor environments
  • The bonded aluminium tape outer conductor is overlapped to provide 100% coverage, resulting in 0.90 dB RF shielding
  • The intimately bonded structure and foam dielectric of LMR® cables provide excellent phase stability over temperature and with bending
  • The high velocity dielectric results in superior phase stability as compared with RG58 and RG142 solid dielectric cables
  • Industrial data communications experts who understand your protocols, devices, and applications
  • 29.9 dB/100 ft attenuation at 5800 MHz, 18.8 dB/100 ft attenuation at 2450 MHz, 11.2 dB/100 ft attenuation at 915 MHz
  • -70 to 85 deg C storage temperature range, -40 to 85 deg C installation temperature range
  • LMR® 195 extension cable with reverse polarity, right angle RP SMA male type connector on radio side and reverse polarity, SMA bulkhead connector on antenna side
  • Use to remotely mount antennas with RP female connectors


Conductor Type:Aluminum
Country of Origin:US
Jacket Color:Black
Jacket Material:Polyethylene
Temperature Rating:-40 to 85 deg C
Voltage Rating:1000 VDC
